APC Symmetra PX 16KVA POWER MODULEyear2012SYPM10K16H


Prijs: € Op aanvraag (Verkocht)

APC Symmetra PX 16KVA POWER MODULEyear2012SYPM10K16H

APC Symmetra PX 16KVA POWER MODULEyear2012SYPM10K16H APC Symmetra PX 16KVA POWER MODULEyear2012SYPM10K16H APC Symmetra PX 16KVA POWER MODULEyear2012SYPM10K16H

Beschrijving

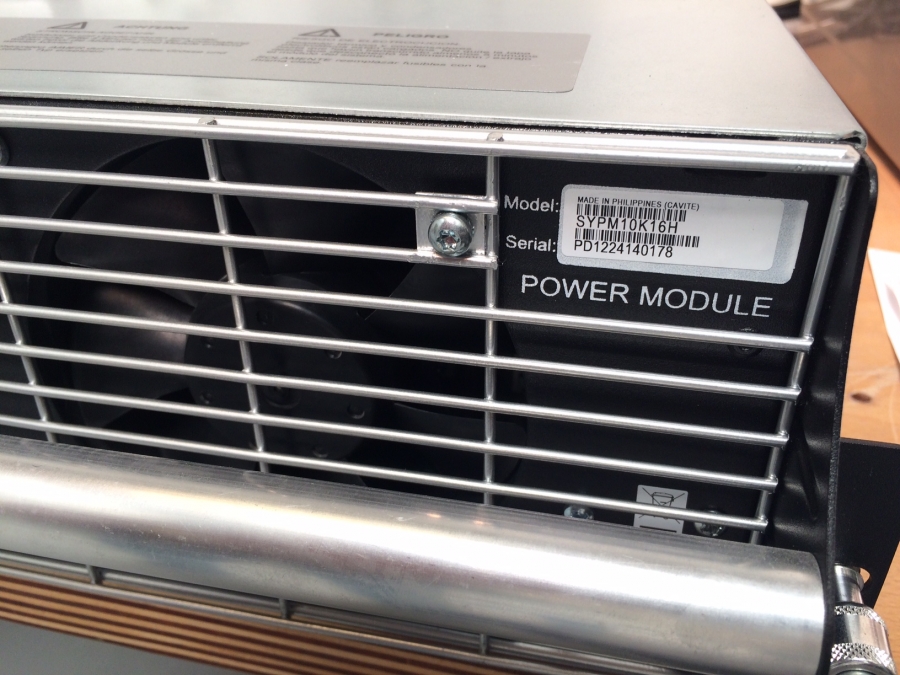

Almost new APC Symmetra PX 16KVA POWER MODULE
Built: June 2012
Model: SYPM10K16H
Serial: PD1224140178

Comes with original APC test print.

In good working order, hard to get!
New value Euro 5000,-!

http://www.apc.com/resource/include/techspec_index.cfm?base_sku=SYPM10K16H
----

Output

Output Power Capacity: 16 kW / 16 kVA
Max Configurable Power: 16 kW / 16 kVA
Nominal Output Voltage: 230V, 400V 3PH
Efficiency at Full Load: 95.0%
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor: Unlimited
Topology: Double Conversion Online
Output Connections: (1) Hard Wire 5-wire (3PH + N + G)
Output Voltage Tolerance: +/-1% static and +/- 5% at 100% load step
Output Voltage THD: < 2% for 0 to 100% linear load and < 6% for full non linear load
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Efficiency at Half Load: 95.0%

Input

Nominal Input Voltage: 400V 3PH
Input Frequency: 40 - 70 Hz
Input Connections: Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations: 340 - 477V
Maximum Input Current: 33A
Maximum Short Circuit Withstand (Icw): 30.0 kA
Input Total Harmonic Distortion: Less than 5% for full load

Physical

Maximum Height: 132.00 mm
Maximum Width: 483.00 mm
Maximum Depth: 700.00 mm
Rack Height: 3U
Net Weight: 28.50 KG

Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-999.9 meters
Storage Temperature: -15 - 40 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-4500 meters
Audible noise at 1 meter from surface of unit: 63.00 dBA
Online Thermal Dissipation: 2573.00 BTU/hr
Protection Class: NEMA 1

Conformance

Regulatory Approvals: CE, EN 50091-1, EN 50091-3, FCC Part 15 Class A, VFI-SS-111


Aanvraagformulier voor dit product

Naam:
Bedrijf:
Telefoonnummer:
E-mail:
Bericht:

Almost new APC Symmetra PX 16KVA POWER MODULE
Built: June 2012
Model: SYPM10K16H
Serial: PD1224140178

Comes with original APC test print.

In good working order, hard to get!
New value Euro 5000,-!

http://www.apc.com/resource/include/techspec_index.cfm?base_sku=SYPM10K16H
----

Output

Output Power Capacity: 16 kW / 16 kVA
Max Configurable Power: 16 kW / 16 kVA
Nominal Output Voltage: 230V, 400V 3PH
Efficiency at Full Load: 95.0%
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor: Unlimited
Topology: Double Conversion Online
Output Connections: (1) Hard Wire 5-wire (3PH + N + G)
Output Voltage Tolerance: +/-1% static and +/- 5% at 100% load step
Output Voltage THD: < 2% for 0 to 100% linear load and < 6% for full non linear load
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Efficiency at Half Load: 95.0%

Input

Nominal Input Voltage: 400V 3PH
Input Frequency: 40 - 70 Hz
Input Connections: Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations: 340 - 477V
Maximum Input Current: 33A
Maximum Short Circuit Withstand (Icw): 30.0 kA
Input Total Harmonic Distortion: Less than 5% for full load

Physical

Maximum Height: 132.00 mm
Maximum Width: 483.00 mm
Maximum Depth: 700.00 mm
Rack Height: 3U
Net Weight: 28.50 KG

Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-999.9 meters
Storage Temperature: -15 - 40 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-4500 meters
Audible noise at 1 meter from surface of unit: 63.00 dBA
Online Thermal Dissipation: 2573.00 BTU/hr
Protection Class: NEMA 1

Conformance

Regulatory Approvals: CE, EN 50091-1, EN 50091-3, FCC Part 15 Class A, VFI-SS-111
